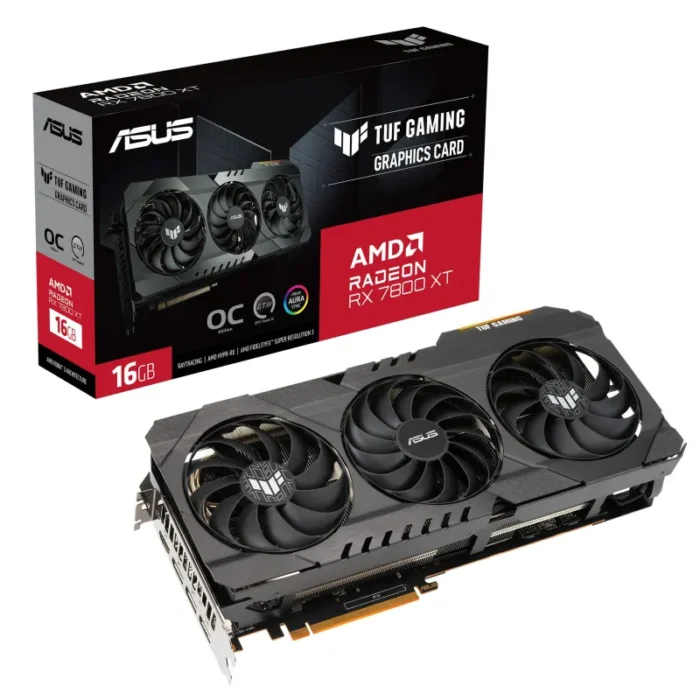

ASUS TUF-RX7800XT-O16G-OG-GAMING AMD Radeon RX 7800 XT 16 GB GDDR6
- OC Mode: up to 2565 MHz (Boost Clock)/ up to 2254 MHz (Game Clock)
- Axial-tech upgrades features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
- Dual ball fan bearings last up to twice as long as conventional designs
- Military-grade capacitors rated for 20K hours at 105C make the GPU power rail more durable
- Metal Exoskeleton adds structural rigidity and vents to increase heat dissipation
- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
FLYIN’ TUF
The AMD RDNA™ 3 Architecture elevated by buffed cooling and power delivery to effortlessly churn out frames at 4K resolution and beyond, and backed with an arsenal of rugged reinforcements to cover your six.
Lock, load, and dominate with the TUF Gaming Radeon™ RX 7800 XT OG Edition.
AXIAL-TECH UPGRADES
Air Superiority

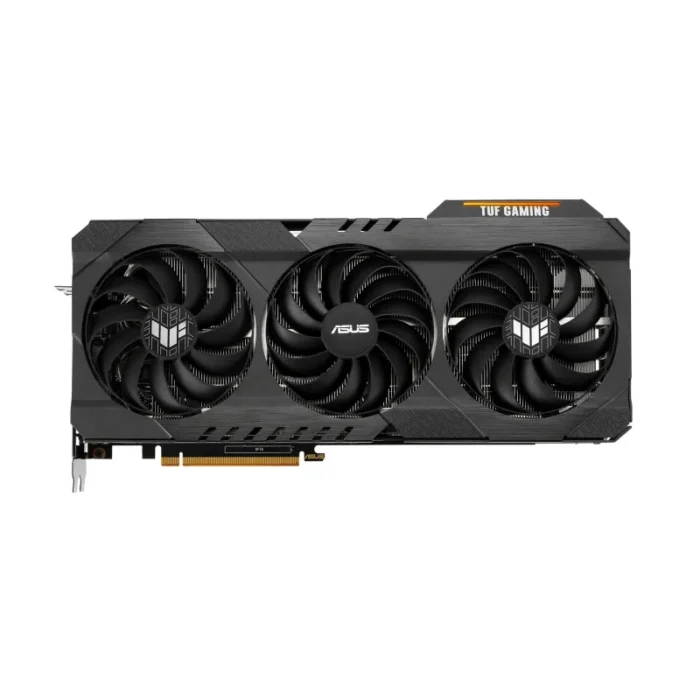

Three tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.
NEW DIRECTION
Well-maintained Formation
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 55 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 60 Celsius, referencing a speed curve that balances performance and acoustics for work or play.
2.9-SLOT DESIGN
Phase That Blaze
The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card’s large, 2.9-slot footprint.
MILITARY-GRADE 20K CAPACITORS
Resilient Squadron
A lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions.
METAL EXOSKELETON
Suit Up

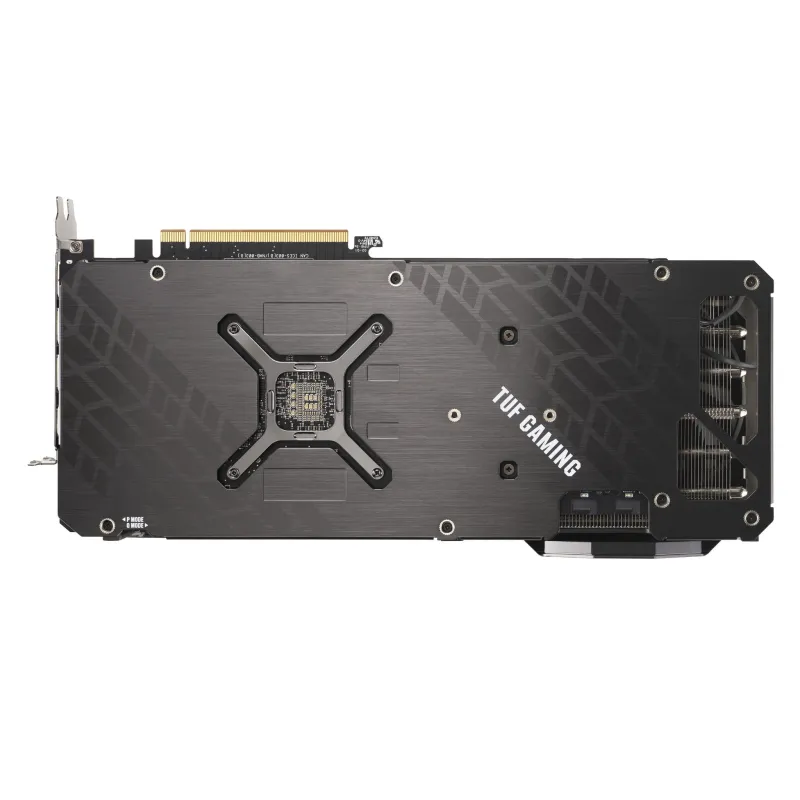

An aluminum shroud and backplate, complemented by a robust diecast core in the middle, prevent PCB flex and feature large vents to further increase heat dissipation.
AUTO-EXTREME TECHNOLOGY
RELIABILITY BOOST
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
AURA SYNC
Light ‘em Up!
Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you.
GPU Tweak III
Monitor, tweak, and tune
ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.
QuantumCloud
Profit from GPU power
QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!
AMD Software
Change the way you game
The latest AMD Software unleashes the full potential of your GPU with day-0 drivers optimized for new game releases and a highly customizable gaming experience.
Pair with a PSU
Use our wattage calculator to estimate how much power you’ll need to fuel your rig and then pick a compatible ROG Thor, ROG Loki, or ROG Strix AURA PSU for ultimate performance.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Stream processors | 3840 |
| Maximum displays per videocard | 4 |
| Processor boost clock speed (Gaming mode) | 2254 MHz |
| Processor boost clock speed (OC mode) | 2565 MHz |
| Processor boost clock speed | 2520 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | Radeon RX 7800 XT |
| Graphics processor family | AMD |
| Memory | |
|---|---|
| Data transfer rate | 19.5 Gbit/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 2.1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| Dual Link DVI | No |
| HDCP version | 2.3 |
| HDCP | Yes |
| OpenGL version | 4.6 |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Illumination | Yes |
| Illumination colour | Blue, Green, Red |
| Number of slots | 2.9 |
| Number of fans | 3 fan(s) |
| Cooling technology | ASUS Axial-tech |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 2x 8-pin |
| Minimum system power supply | 750 W |
| Weight & dimensions | |
|---|---|
| Height | 140.2 mm |
| Depth | 57.8 mm |
| Length | 320 mm |
| Weight | 1.72 kg |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 2.3 kg |
| Package height | 88.5 mm |
| Package depth | 233 mm |
| Package width | 405 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
- manual pdf
