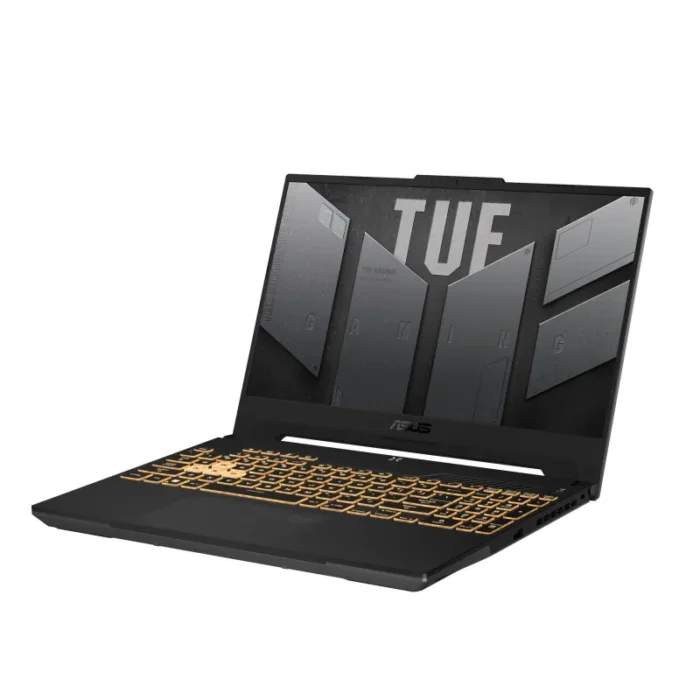

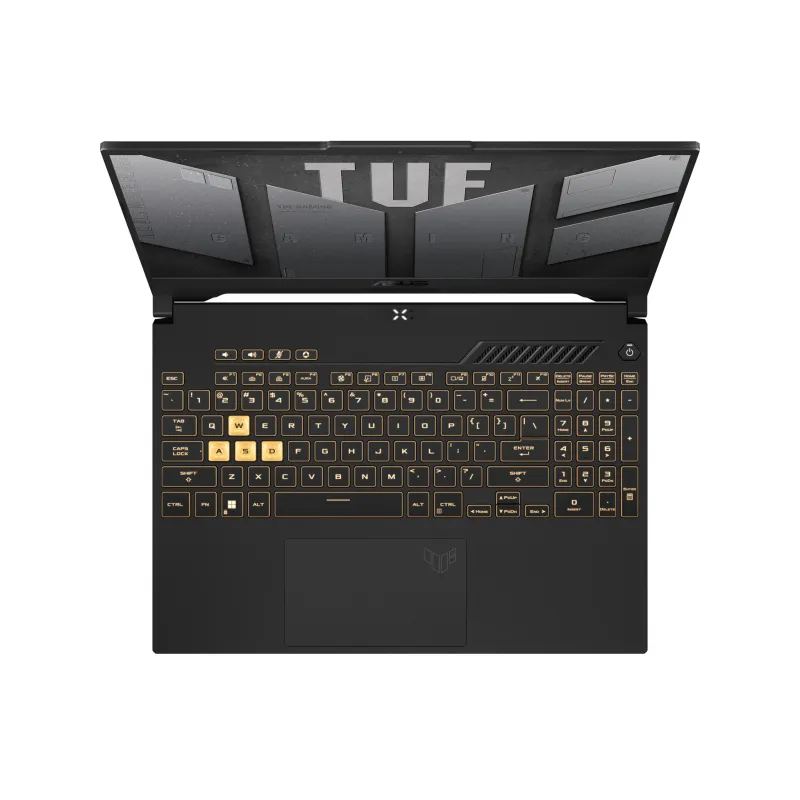

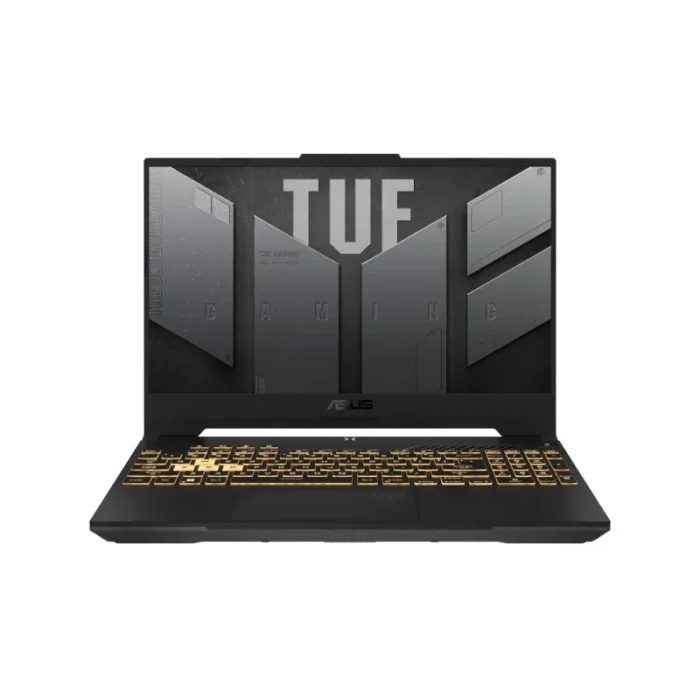

ASUS TUF Gaming F15 FX507ZV4-LP001W Intel® Core™ i7 i7-12700H Laptop 39.6 cm (15.6″) Full HD 16 GB DDR4-SDRAM 512 GB SSD NVIDIA GeForce RTX 4060 Wi-Fi 6 (802.11ax) Windows 11 Home Grey
- Windows 11 Home 64-bit
- Intel Core i7-12700H (24MB Cache)
- 39.6 cm (15.6″) Full HD 1920 x 1080 IPS, NVIDIA GeForce RTX 4060 (8GB GDDR6)
- 16GB (3200MHz) DDR4-SDRAM (2 x 8) & 512GB SSD
Mechanized endurance. Battlefield brilliance.
DESIGN
BRAND NEW DESIGN
The chassis has been redesigned for 2023, now 4.5% smaller than the previous design. The two color options each have a different logo location, with the Jaeger Gray edition featuring a large laser-sculpted design, and the Mecha Gray edition showing off an embossed logo on the lid. The four-way indicators can be seen even while the clamshell is closed, and the touchpad features a mech-inspired TUF logo in the corner.
| Design |
| Market positioning |
Gaming |
| Form factor |
Clamshell |
| Colour name |
Mecha Gray |
| Product colour |
Grey |
| Product type |
Laptop |
| Display |
| Maximum refresh rate |
144 Hz |
| RGB colour space |
sRGB |
| Colour gamut |
100% |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:9 |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
No |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
39.6 cm (15.6″) |
| Processor |
| Configurable TDP-down |
35 W |
| Processor cache |
24 MB |
| Processor boost frequency |
4.7 GHz |
| Processor cores |
14 |
| Processor model |
i7-12700H |
| Processor generation |
12th gen Intel® Core™ i7 |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
| Maximum internal memory |
32 GB |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
2 x 8 GB |
| Memory clock speed |
3200 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
16 GB |
| Storage |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Total storage capacity |
512 GB |
| Graphics |
| NVIDIA G-SYNC |
Yes |
| On-board graphics card model |
Intel Iris Xe Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
8 GB |
| Discrete graphics card model |
NVIDIA GeForce RTX 4060 |
| Discrete GPU manufacturer |
NVIDIA |
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of built-in speakers |
2 |
| Audio system |
Dolby Atmos |
| Camera |
| Front camera resolution |
1280 x 720 pixels |
| Front camera HD type |
HD |
| Front camera |
Yes |
| Network |
| Bluetooth version |
5.2 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Antenna type |
2×2 |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
1 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Keyboard |
| Keyboard backlit colour |
RGB |
| Numeric keypad |
Yes |
| Keyboard backlit |
Yes |
| Pointing device |
Touchpad |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Home |
| Processor special features |
| CPU configuration (max) |
1 |
| Battery |
| Battery capacity |
90 Wh |
| Number of battery cells |
4 |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power |
| USB Power Delivery (USB PD) |
Yes |
| DC-in jack |
Yes |
| AC adapter output voltage |
20 V |
| AC adapter output current |
12 A |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50 – 60 Hz |
| AC adapter power |
240 W |
| Security |
| Password protection type |
BIOS, User |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Sustainability |
| Sustainability certificates |
EPEAT Bronze, ENERGY STAR |
| Weight & dimensions |
| Height (rear) |
2.49 cm |
| Height (front) |
2.24 cm |
| Depth |
251 mm |
| Width |
354 mm |
| Weight |
2.2 kg |
| General |
| Product family |
TUF Gaming |
| Product series |
F15 |
