Graphics grunt, superior storage

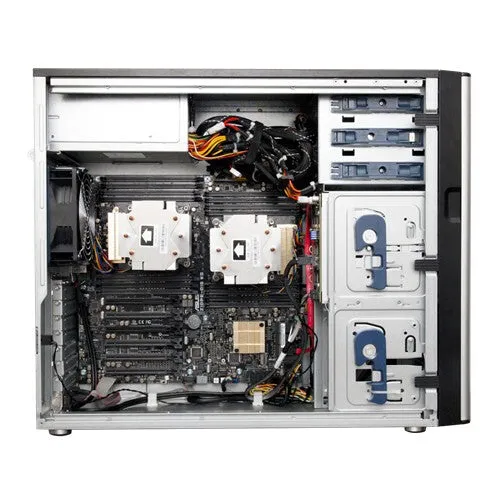

TS700-E8-PS4 V2 is designed for dual use server and workstation supporting extreme graphics power, optimized audio performance, BIOS flashback and Q-code logger, an easy-maintenance button. It features the latest Intel® Xeon® processor E5-2600 v3 product families, 16 DIMMs, six expansion slots, three 5.25” media bays. TS700-E8-PS4 V2 is perfect for growing business applications and individual workstation users.
Exceptional workstation graphics
With a total of six PCI Express 3.0 slots — four at x16 and two at x8 — TS700-E8-PS4 V2 has all the potential your organization needs for intense workstation graphics and high-performance computing. Pack the workstation with up to three dual-width graphics cards and still have room for a RAID card — so you’re all set for diverse storage and networking applications, and ready to deal with a high-scalability future!
Crammed with connectivity
TS700-E8-PS4 V2 is the workstation that’s ready to connect to everything and anything, with six USB ports (including four USB 3.0), dual Gigabit Ethernet connectors and an onboard M.2 slot for up to 10Gbit/s transfers with the latest storage devices — and in any size from 60mm (2260) to 110m (22110), with capacities up to 480GB! TS700-E8-PS4 V2 even has built-in high-definition, 7.1-channel surround-sound audio for sound output with exceptional clarity and fidelity.
Upright or racked
TS700-E8-PS4 V2 is supplied as a pedestal (tower-style) workstation but it’s also easily rack-mountable with the optional rack-mount kit — giving you the freedom and flexibility of form factor, allowing you to save space as your business grows or reconfigure quickly as your needs change.
Premium power efficiency
Premium components carefully arranged by ASUS engineers to provide premium efficiency. With ASUS Beat Thermal Chokes, Dr. MOS and Single 1200W 80 PLUS Platinum PSU, TS700-E8-PS4 V2 delivers great durability and up to 94% power efficiency for high-performance computing (HPC) applications. The 1+1 power supply design allows the server to keep working even if one power supply requires maintenance, enabling uninterrupted operation.
TS700-E8-PS4 V2’s solid 12K capacitors are able to withstand up to 12,000 hours of high ambient temperatures. These 12K capacitors also boast lower equivalent series resistance (ESR) for increased efficiency and minimal heat generation.
Complete storage solution with PIKE II 3008/3108 support
TS700-E8-PS4 V2 has 6Gbit/s SATA and offers compatibility with the latest 12Gbit/s SAS connectivity — and that means data transfers at up to twice (2X) the speed of the previous SAS generation! With ASUS PIKE II 3008 or 3108 installed, you’ll benefit from support for both 6Gbit/s SATA and 12Gbit/s SAS storage options, as well as high-performance integrated RAID data protection. The wide variety of port configurations and RAID levels mean that PIKE II 3008 and PIKE II 3108 offer flexibility for all applications and deliver superior data integrity.
Factor in multiple host bus adapters (HBAs) and it’s clear that PIKE II 3008 and PIKE II 3108 provide a fast, reliable and simple route to improved performance, speed and storage capacity — perfect for both your users and your organization!
