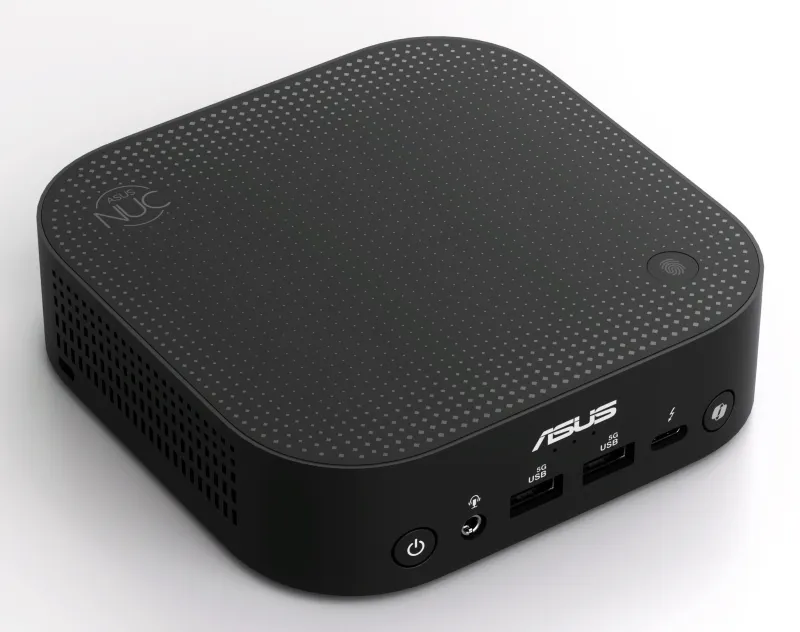

ASUS NUC RNUC14LNKU9094N2 Intel Core Ultra 9 288V 32 GB LPDDR5x-SDRAM 1 TB SSD Windows 11 Pro Mini PC Black
- Windows 11 Pro 64-bit
- Intel Core Ultra 9 288V (12MB Cache)
- 32GB (8533MHz) LPDDR5x-SDRAM & 1000GB SSD
Create, achieve, and stay secure with AI Innovation
The World’s First AI Mini PC,powered by the Intel® Core™ Ultra processor (Series 2, formerly Lunar Lake), delivering advanced AI capabilities in a compact <0.6L design. it features Copilot+ button, Wi-Fi 7, Bluetooth 5.4, voice command, and fingerprint recognition with Secure Boot for enhanced security, plus effortless tool-free installation. This revolutionary device sets a new benchmark for mini PC innovation, providing unparalleled performance across business, entertainment, and industrial applications.
| Processor |
| Processor base power |
30 W |
| Maximum turbo power |
37 W |
| Processor cache type |
Smart Cache |
| Processor cache |
12 MB |
| Low Power Efficient-core Base Frequency |
3300 MHz |
| Performance-core base frequency |
3.3 GHz |
| Low Power Efficient-core Max Turbo Frequency |
3.7 GHz |
| Performance-core Max Turbo Frequency |
5.1 GHz |
| Low Power Efficient-cores |
4 |
| Performance cores |
4 |
| Processor boost frequency |
5.1 GHz |
| Processor threads |
8 |
| Processor cores |
8 |
| Processor model |
288V |
| Processor generation |
Intel Core Ultra (Series 2) |
| Processor family |
Intel Core Ultra 9 |
| Processor manufacturer |
Intel |
| Neural processor unit (NPU) |
| GPU performance up to |
67 TOPs |
| NPU performance up to |
48 TOPs |
| Total processor performance up to |
120 TOPs |
| AI software frameworks supported by NPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Windows Studio effects support |
Yes |
| Sparsity support |
Yes |
| Neural processor unit (NPU) |
Intel AI Boost |
| Memory |
| Memory channels |
Dual-channel |
| Memory clock speed |
8533 MHz |
| Internal memory type |
LPDDR5x-SDRAM |
| Internal memory |
32 GB |
| Storage |
| M.2 SSD size |
2280 (22 x 80 mm) |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
1 TB |
| Graphics |
| On-board graphics card model |
Intel Arc Graphics 140V |
| On-board graphics card family |
Intel Arc Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
| Bluetooth version |
5.4 |
| Bluetooth |
Yes |
| WLAN controller model |
Intel Wi-Fi 7 BE201 |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| WLAN controller manufacturer |
Intel |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi |
Yes |
| LAN controller |
Intel I226-V |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Ethernet LAN |
Yes |

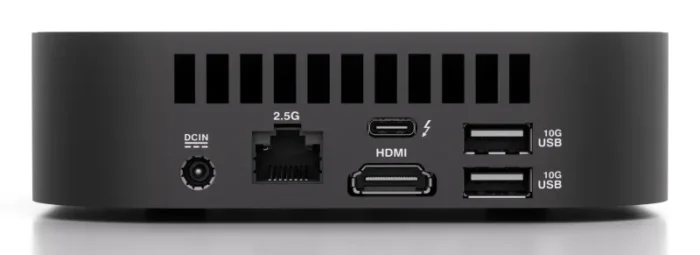

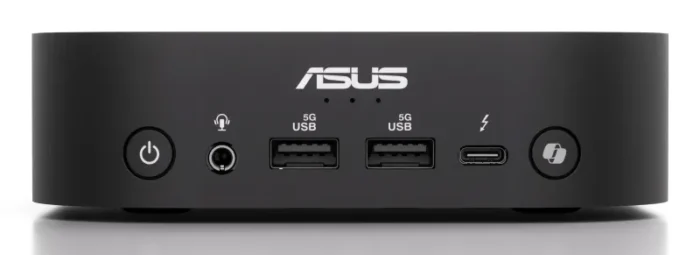

| Ports & interfaces |
| Number of front audio ports |
1 |
| Number of rear USB ports |
3 |
| Number of front USB ports |
3 |
| DC-in jack |
Yes |
| Combo headphone/mic port |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| Thunderbolt 4 ports quantity |
2 |
| Intel® Thunderbolt 4 |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Design |
| Introduction year |
2025 |
| Product colour |
Black |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Placement supported |
Horizontal |
| Chassis type |
Mini PC |
| Performance |
| Audio chip |
Realtek ALC3288 |
| Motherboard chipset |
Intel SoC |
| Market positioning |
Business |
| Product type |
Mini PC |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Weight & dimensions |
| Weight |
500 g |
| Height |
34 mm |
| Depth |
130 mm |
| Width |
130 mm |
| Packaging content |
| Display included |
No |
| General |
| Product family |
NUC |
| Product series |
14 Pro AI |
