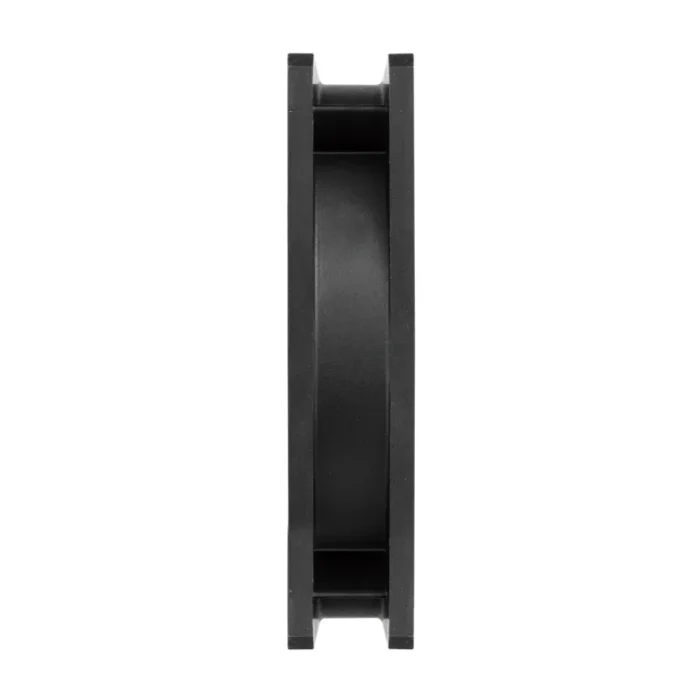

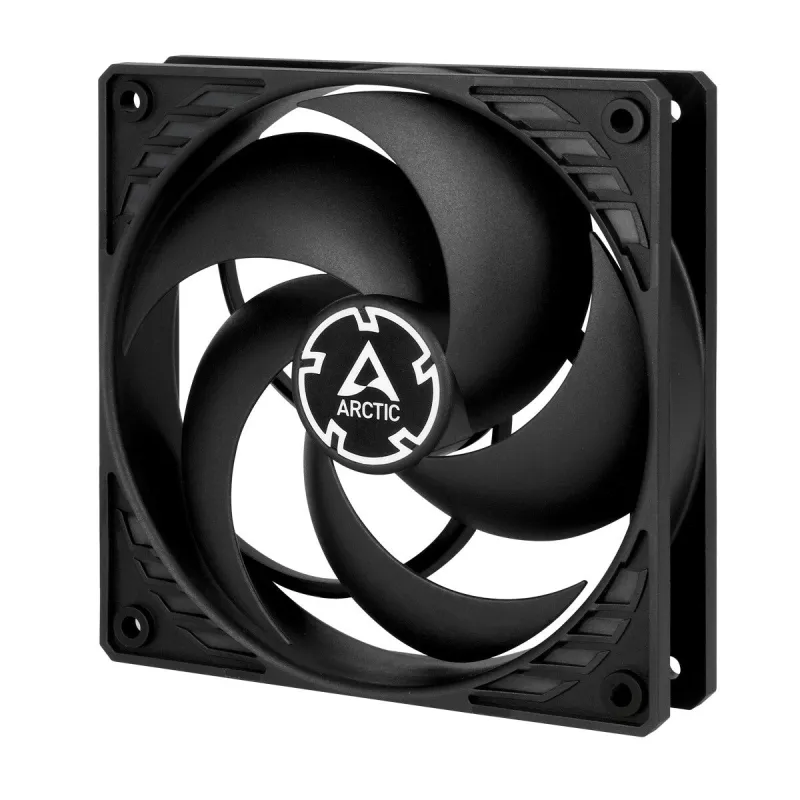

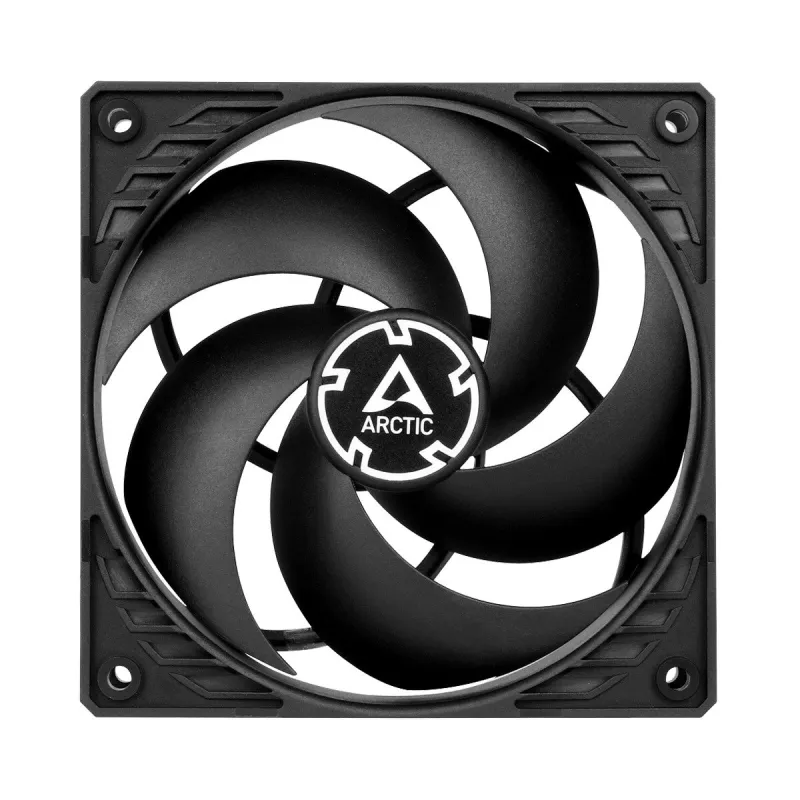

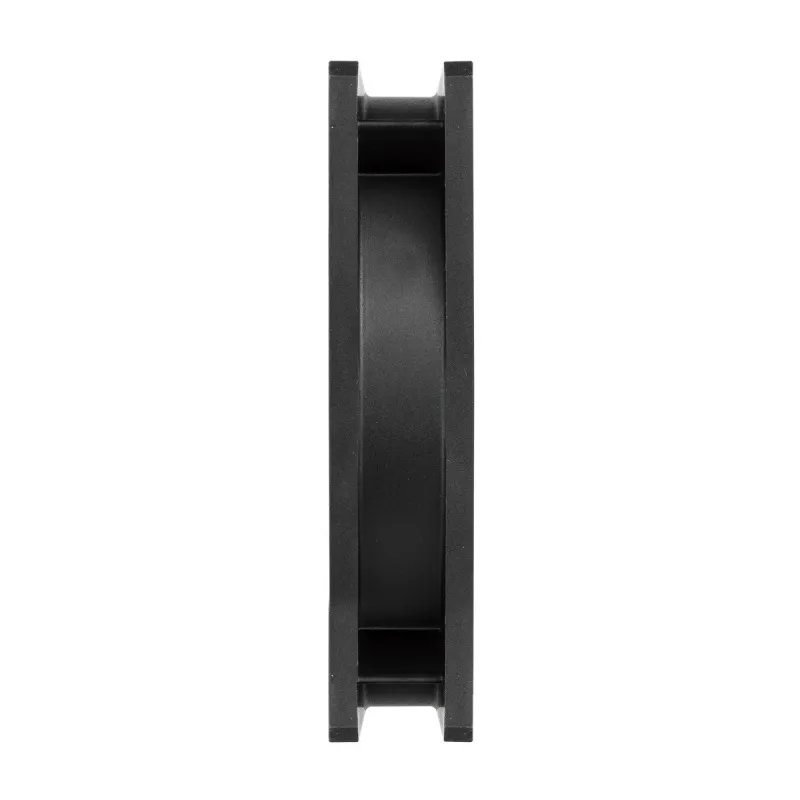

ARCTIC P12 PWM PST (Black/Black) Pressure-optimised 120 mm Fan with PWM PST
- Optimised for static pressure
- Ideal choice on heatsinks, radiators and (partly-) covered case vents
- Push- or pull-configuration
- PWM Sharing Technology (PST) regulates fan speed synchronously
- Newly developed, very quiet motor
- Extended life span
- 0 dB mode: silent passive mode when PWM signal is below 5 %
- Available in three sleek colors
Our coolers have pushed the limits further every year – and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and guarantee you lowest noise levels at affordable prices.
| Performance |
| Bearing type |
Fluid Dynamic Bearing (FDB) |
| Pulse-width modulation (PWM) support |
Yes |
| Maximum air pressure |
2.2 mmH2O |
| Airflow |
95.65 m³/h |
| Maximum airflow |
56.3 cfm |
| Noise level |
0.3 sone |
| Rotational speed (max) |
1800 RPM |
| Rotational speed (min) |
200 RPM |
| Compatible processor series |
Not supported |
| Supported processor sockets |
Not supported |
| Fan diameter |
12 cm |
| Type |
Fan |
| Suitable location |
Computer case |
| Design |
| Fan connector |
4-pin + 4-pin |
| Number of fan blades |
5 |
| Number of fans |
1 fan(s) |
| Product colour |
Black |
| Power |
| Rated current |
0.08 A |
| Starting voltage |
3.9 V |
| Voltage |
12 V |
| Power consumption (typical) |
0.96 W |
| Weight & dimensions |
| Package weight |
176 g |
| Package height |
27 mm |
| Package depth |
123 mm |
| Package width |
123 mm |
| Cable length |
0.4 m |
| Weight |
145 g |
| Height |
25 mm |
| Depth |
120 mm |
| Width |
120 mm |
| Packaging content |
| Number of screws |
4 |
| Screws included |
Yes |
| Package type |
Box |
| Other features |
| Country of origin |
China |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
