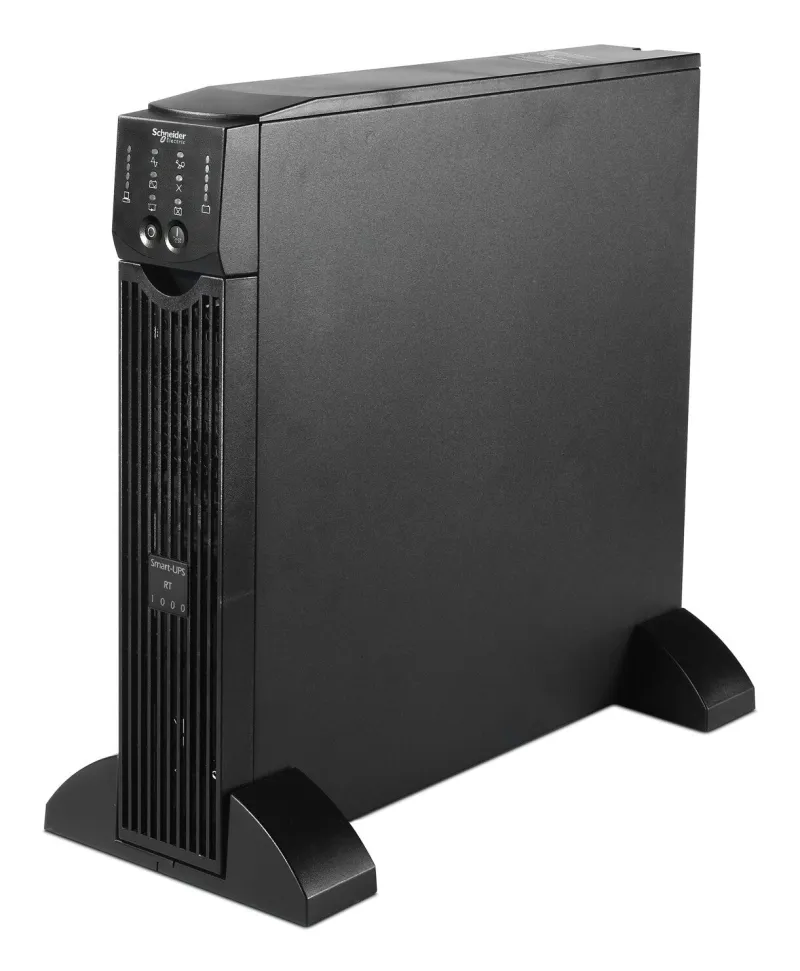

APC Smart-UPS SMT750IC – 6x C13, USB, SmartConnect, 750VA
- 1000VA/700W UPS

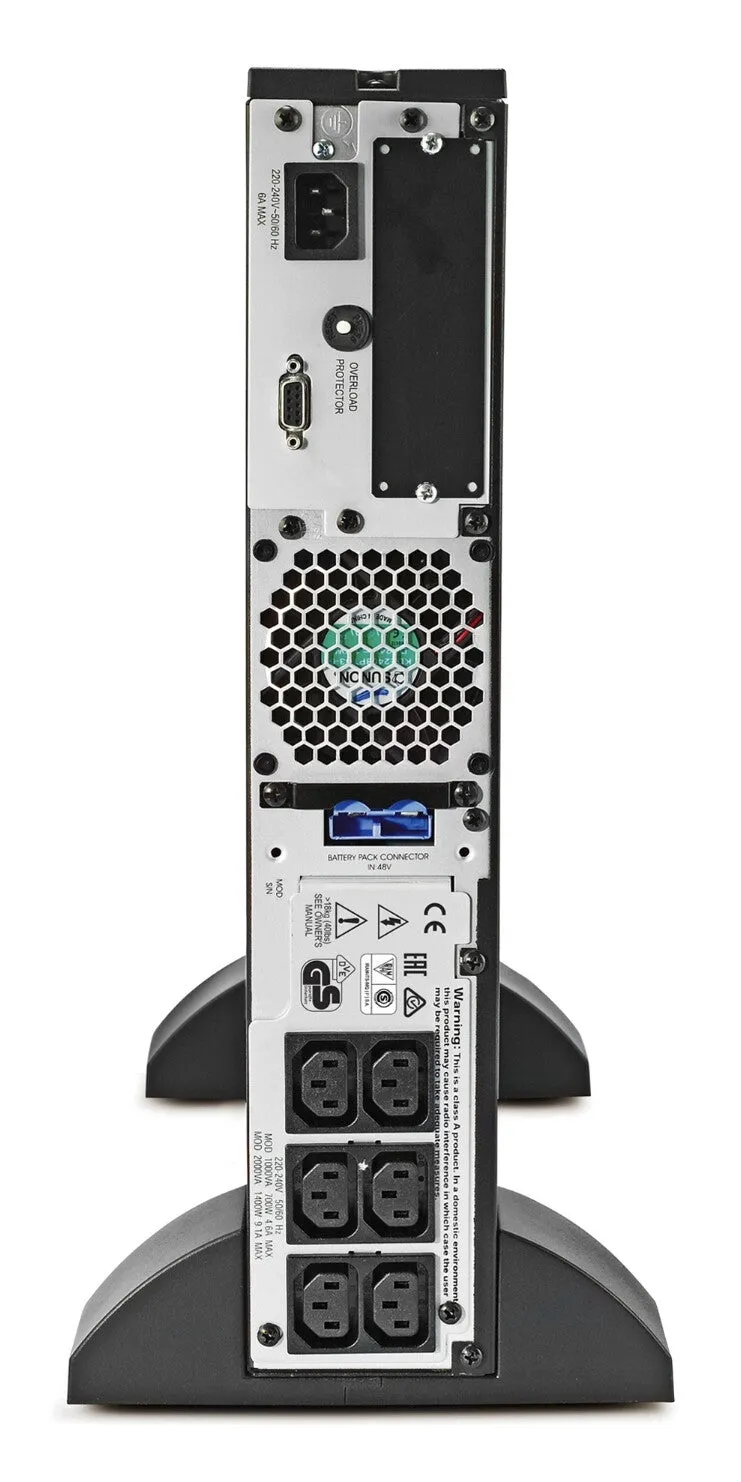

- IEC C14 for input, 6x IEC C13 and 2 IEC jumpers for output
- 220V, 230V and 240V user selectable output
- SmartSlot for optional remote management and monitoring of the UPS and connected load
| Features |
| Audible alarm(s) |
Yes |
| Noise level |
50 dB |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Crest factor |
3:1 |
| Heat dissipation |
324 BTU/h |
| Surge energy rating |
420 J |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Input frequency |
50/60 Hz |
| Input operation voltage (max) |
280 V |
| Input operation voltage (min) |
160 V |
| Waveform |
Sine |
| Output power |
700 W |
| Output power capacity |
0.75 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| SmartSlot |
Yes |
| Number of output IEC jumpers |
2 |
| AC outlets quantity |
6 AC outlet(s) |
| Power plug |
C14 coupler |
| AC outlet types |
C13 coupler |
| Battery |
| Cold start |
Yes |
| Automatic battery test |
Yes |
| Battery recharge time |
3 h |
| Battery life (max) |
5 year(s) |
| Typical backup time at half load |
31 min |
| Typical backup time at full load |
13 min |
| Battery technology |
Lead-Acid |
| Design |
| LED indicators |
Status |
| Display type |
LCD |
| Cable length |
1.83 m |
| Product colour |
Black |
| Form factor |
Tower |
| Operational conditions |
| Non-operating altitude |
0 – 15000 m |
| Operating altitude |
0 – 3000 m |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating relative humidity (H-H) |
5 – 95% |
| Storage temperature (T-T) |
-15 – 45 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Packaging content |
| Quick installation guide |
Yes |
| Manual |
Yes |
| Cables included |
RS-232 |
| Certificates |
| Compliance certificates |
C-TICK, CE, VDE |
| Weight & dimensions |
| Weight |
23 kg |
| Height |
432 mm |
| Depth |
483 mm |
| Width |
85 mm |
| Packaging data |
| Package weight |
27.8 kg |
| Package height |
286 mm |
| Package depth |
594 mm |
| Package width |
630 mm |
| Logistics data |
| Country of origin |
Philippines |
