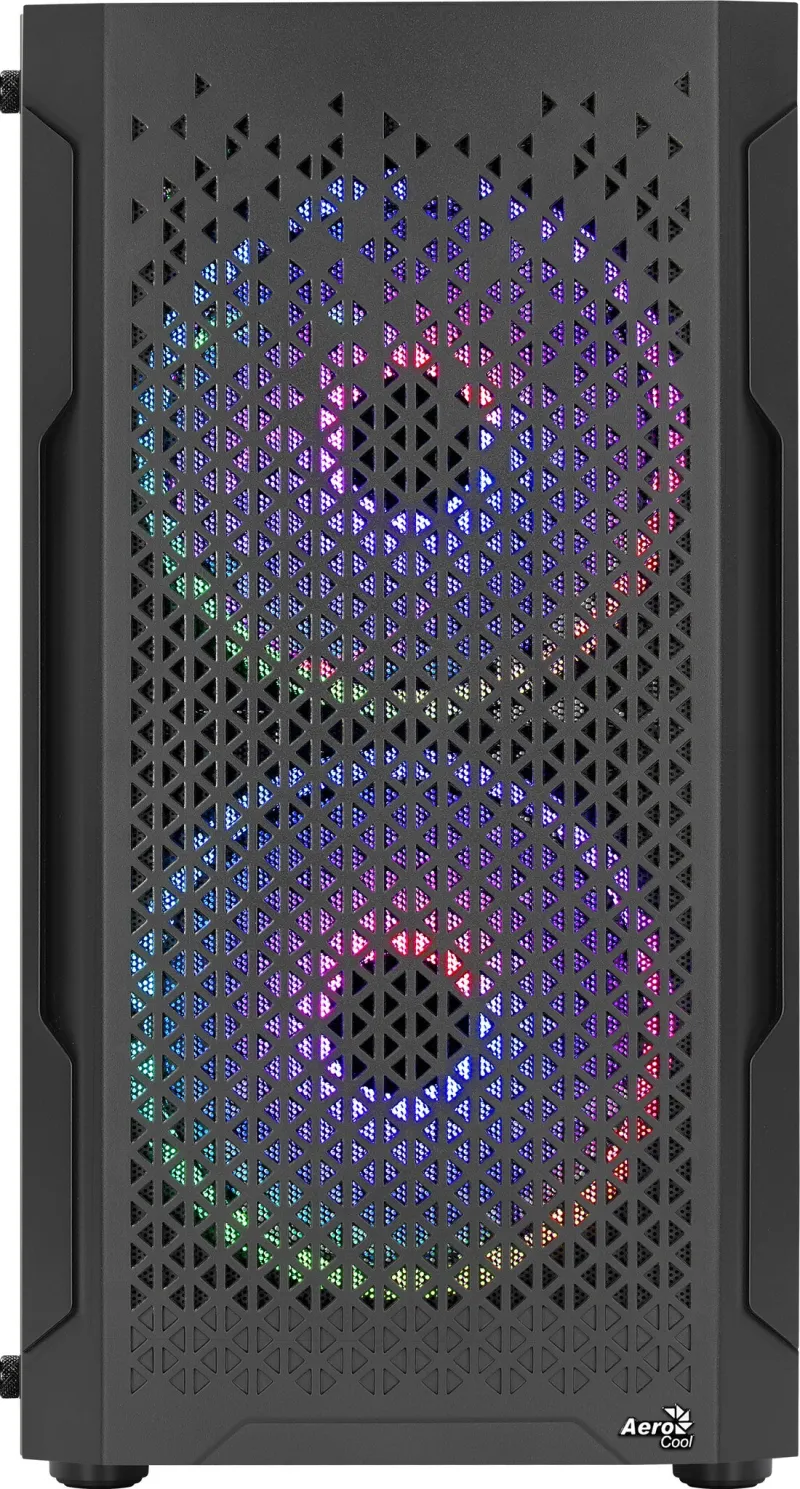

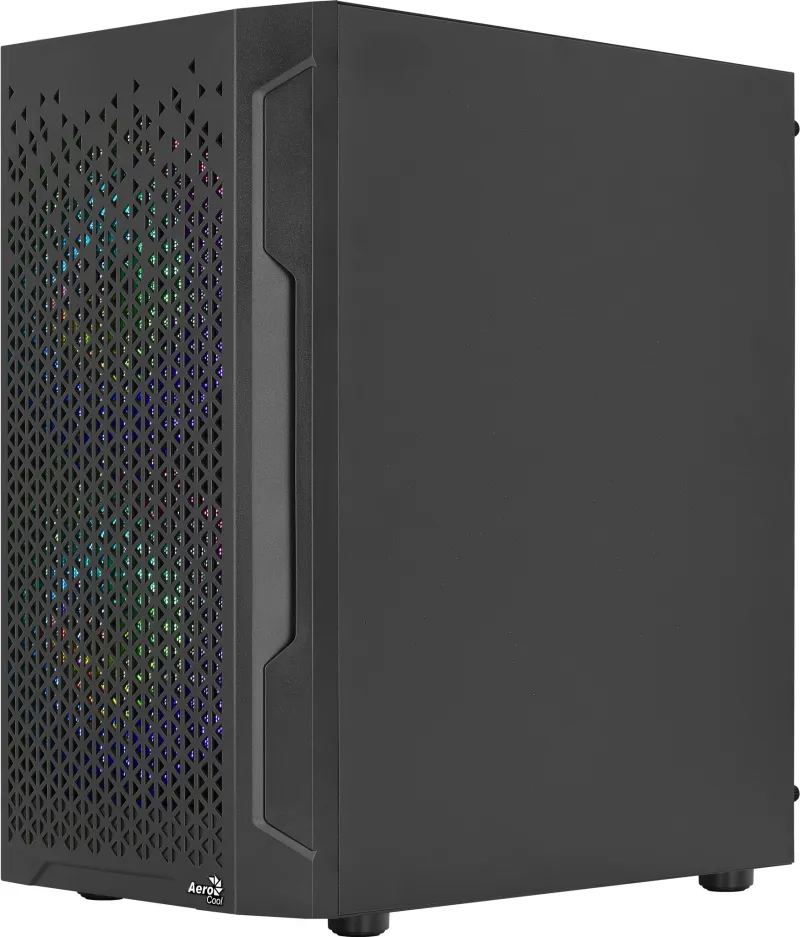

Aerocool Trinity Mini Mini Tower Black
- Front panel with air vents delivers superior air flow and ventilation while allowing for viewing of your front LED fans
- Comes equipped with a full tempered side panel to showcase the inside of your rig
- Fan mounts on the PSU shroud support up to two 12cm fans for improved VGA cooling
- Supports liquid cooling in the front and rear of the case
- Supports air cooling in the front, top, and rear of the case
- Dual chamber design for improved ventilation
Designed with ventilation in mind, this case delivers superior air flow while allowing for viewing of your front LED fans. This high-performance mini tower case comes equipped with a full tempered glass side panel to showcase the inside of your rig. Supports liquid cooling in the front and rear of the case for maximum efficiency cooling.
IMPROVED AIR VENTILATION
Stylish front panel design with built-in air vents delivers increased air flow and ventilation while allowing for viewing of your front LED fans.

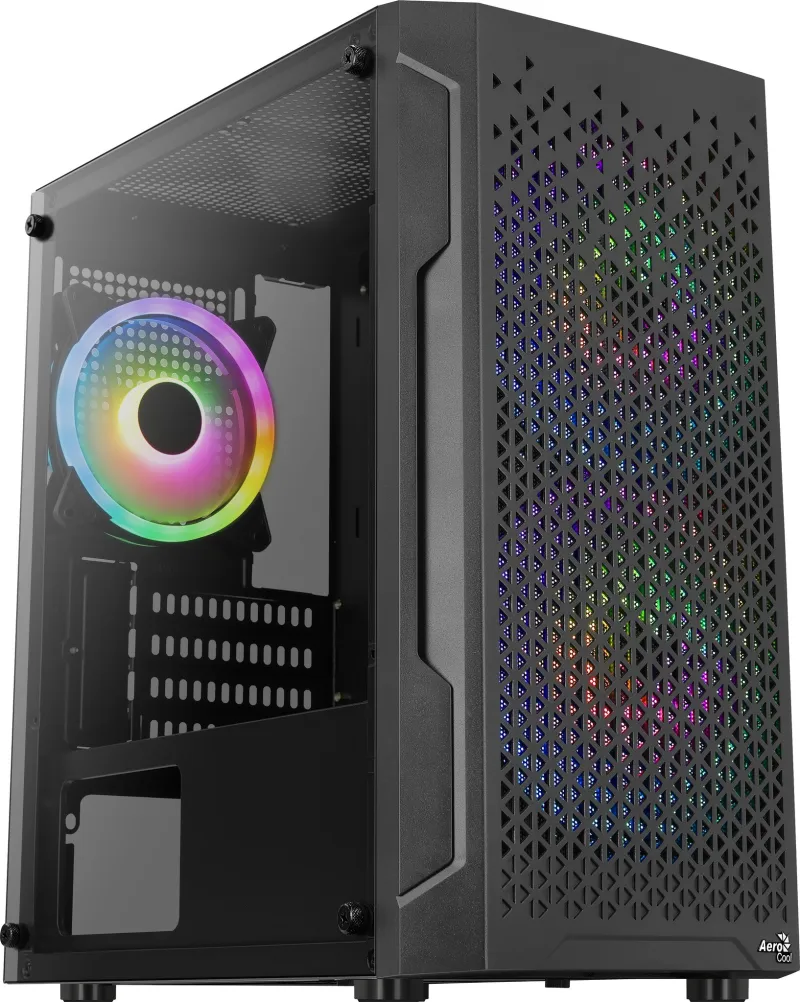

FULL TEMPERED GLASS SIDE PANEL
Comes equipped with a full tempered glass side panel to showcase the inside of your rig and put your components on display.
COOLING FOR YOUR GRAPHICS CARD
Fan mounts on the PSU shroud support graphics card cooling :
2 x 120mm fans for superior VGA cooling.
AIR COOLING
Supports air cooling in the front, top, and rear of the case to enhance cooling performance.
– Front: 120mm x 2 or 140mm x 2 (Max.)
– Top: 120mm x 2 (Max.)
– Rear: 120mm x 1 (Max.)
– PSU Shroud: 120mm x 2 (Max.)
LIQUID COOLING
Supports liquid cooling in the front and rear of the case for maximum efficiency cooling.
– Front: 120/240mm Radiator (Optional) (for 240mm, supports max length of 240mm and max thickness of 28mm)
– Rear: 120mm Radiator (Optional)
DUAL CHAMBER DESIGN
Built with a dual chamber design to direct heat away from the main chamber for more effective all-around cooling.
BUILT FOR HIGH PERFORMANCE
– Supports Micro-ATX and mini-ITX motherboards
– Supports CPU coolers up to 158mm
– Supports high-end graphics cards up to 297mm (without front radiator)
CONVENIENT ACCESS TO YOUR MEDIA
Quick and easy access to USB 3.0 x 2, USB 2.0 x 1, HD audio and mic ports, and power & reset button.
STORAGE CAPABILITY
Supports up to 2 x 3.5” HDDs (2 x 3.5”/2.5″) and 3 x 2.5” SSDs (1 x 2.5” and 2 x 2.5”/3.5”).
| Design | |
|---|---|
| Maximum graphics card length | 29.7 cm |
| Maximum CPU cooler height | 15.8 cm |
| Cable management | Yes |
| Illumination | Yes |
| Number of expansion slots | 4 |
| Number of 2.5″ bays | 3 |
| Number of 3.5″ bays | 2 |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Product colour | Black |
| Material | ABS, SPCC |
| Type | PC |
| Form factor | Mini Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Cooling | |
|---|---|
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 120,240 mm |
| Top fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 2 |
| Front fans installed | 2x 140 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5″ |
| Weight & dimensions | |
|---|---|
| Material thickness | 0.5 mm |
| Height | 385 mm |
| Depth | 353.4 mm |
| Width | 206.5 mm |
